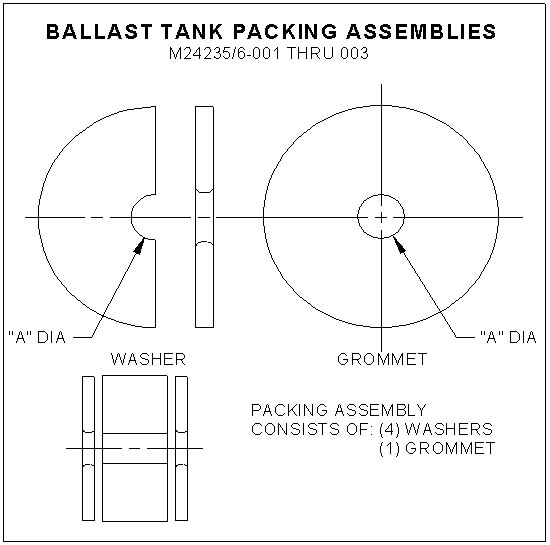

PACKING ASSM. PART NUMBER | WASHERS 4 REQUIRED | PLATE A” DIA | GROMMET 1 REQUIRED | GROMMET A” DIA |
M24235/6-001 | M24235/6-011 | .531 | M24235/6-021 | .490 |
M24235/6-002 | M24235/6-012 | .671 | M24235/6-022 | .490 |
M24235/6-003 | M24235/6-012 | .671 | M24235/6-023 | .600 |
SPECIAL SIZES AND HOLE CONFIGURATIONS AVAILABLE UPON REQUEST
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
