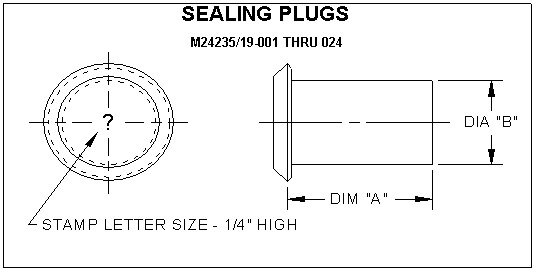

| SIZE | DIM “A” | DIA “B” | MILITARY PART # |
| OC | 1 | .187 | M24235/19-001 |
| OB | 1 | .250 | M24235/19-002 |
| OA | 1 | .312 | M24235/19-003 |
| A | 1-5/8 | .375 | M24235/19-004 |
| B | 1-5/8 | .500 | M24235/19-005 |
| C | 1-5/8 | .540 | M24235/19-006 |
| D | 1-5/8 | .675 | M24235/19-007 |
| E | 1-5/8 | .675 | M24235/19-008 |
| F | 1-5/8 | .675 | M24235/19-009 |
| G | 1-5/8 | .840 | M24235/19-010 |
| J | 1-5/8 | 1.050 | M24235/19-011 |
| K | 3 | 1.050 | M24235/19-012 |
| L | 3 | 1.050 | M24235/19-013 |
| M | 3 | 1.315 | M24235/19-014 |
| N | 3 | 1.315 | M24235/19-015 |
| P | 3 | 1.315 | M24235/19-016 |
| R | 3 | 1.660 | M24235/19-017 |
| S | 5 | 1.660 | M24235/19-018 |
| T | 5 | 1.900 | M24235/19-019 |
| V | 5 | 1.900 | M24235/19-020 |
| W | 5 | 1.900 | M24235/19-021 |
| X | 5 | 2.375 | M24235/19-022 |
| Y | 5 | 2.375 | M24235/19-023 |
| Z | 5 | 2.375 | M24235/19-024 |
OTHER MATERIALS AVAILABLE UPON REQUEST
