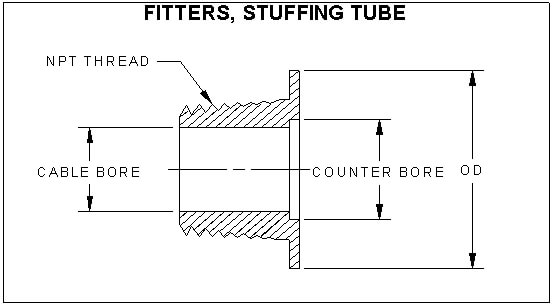

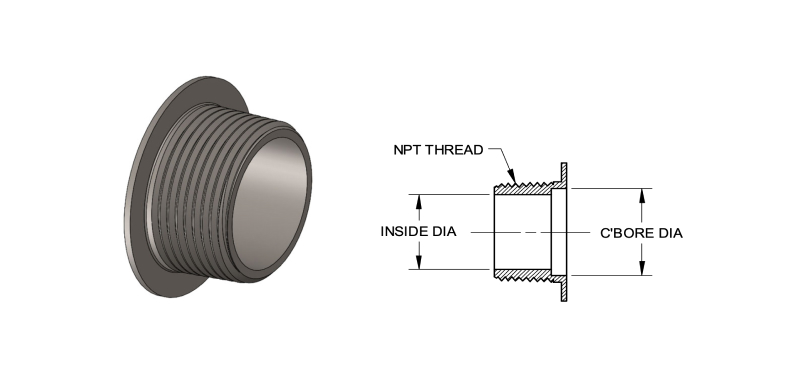

| SIZE | CABLE BORE | COUNTER BORE | OUTSIDE DIA | NPT THREAD | MILITARY PART # |
| A | 0.559 | N/A | 1-1/16 | 3/8 | M24235/15-001 |
| B | 0.668 | N/A | 1-3/16 | 1/2 | M24235/15-002 |
| C | 0.793 | N/A | 1-7/16 | 3/4 | M24235/15-003 |
| D | 0.813 | 0.903 | 1-7/16 | 3/4 | M24235/15-004 |
| E | 0.813 | 0.965 | 1-7/16 | 3/4 | M24235/15-005 |
| F | 0.99 | N/A | 1-13/16 | 1 | M24235/15-006 |
| G | 1.106 | N/A | 1-13/16 | 1 | M24235/15-007 |
| J | 1.215 | N/A | 2-3/16 | 1-1/4 | M24235/15-008 |
| K | 1.324 | N/A | 2-3/16 | 1-1/4 | M24235/15-009 |
| L | 1.418 | N/A | 2-3/16 | 1-1/4 | M24235/15-010 |
| M | 1.559 | N/A | 2-3/8 | 1-1/2 | M24235/15-011 |
| N | 1.563 | 1.724 | 2-3/8 | 1-1/2 | M24235/15-012 |
| P | 1.834 | N/A | 2-7/8 | 2 | M24235/15-013 |
| R | 1.959 | N/A | 2-7/8 | 2 | M24235/15-014 |
| S | 2.084 | N/A | 2-7/8 | 2 | M24235/15-015 |
| T | 2.372 | N/A | 3-1/2 | 2-1/2 | M24235/15-016 |
| V | 2.497 | N/A | 3-1/2 | 2-1/2 | M24235/15-017 |
| W | 2.622 | N/A | 4-1/8 | 3 | M24235/15-018 |
| X | 2.81 | N/A | 4-1/8 | 3 | M24235/15-019 |
| Y | 2.919 | N/A | 4-1/8 | 3 | M24235/15-020 |
| Z | 3.091 | N/A | 4-1/8 | 3 | M24235/15-021 |
| AA | 3.185 | N/A | 4-3/4 | 3-1/2 | M24235/15-022 |
OTHER MATERIALS AVAILABLE UPON REQUEST
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
