Weather Deck Outlet

View All Military & Commercial Stuffing Tubes MIL S-24235 Weather Deck Outlet ( 9000-S6202-74438 )

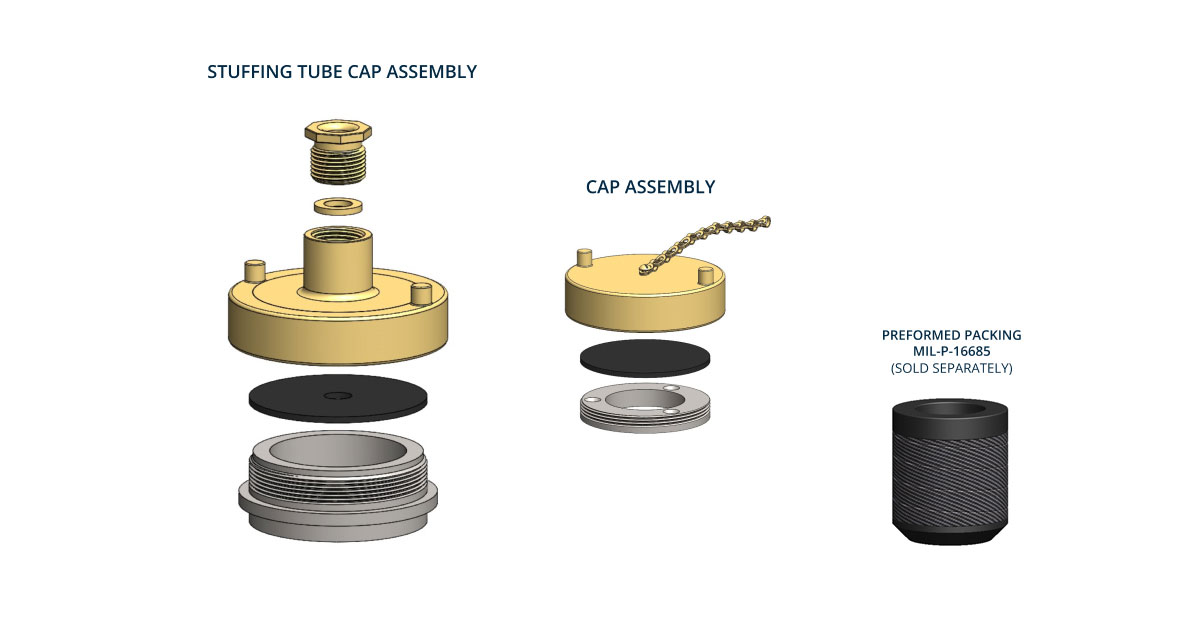

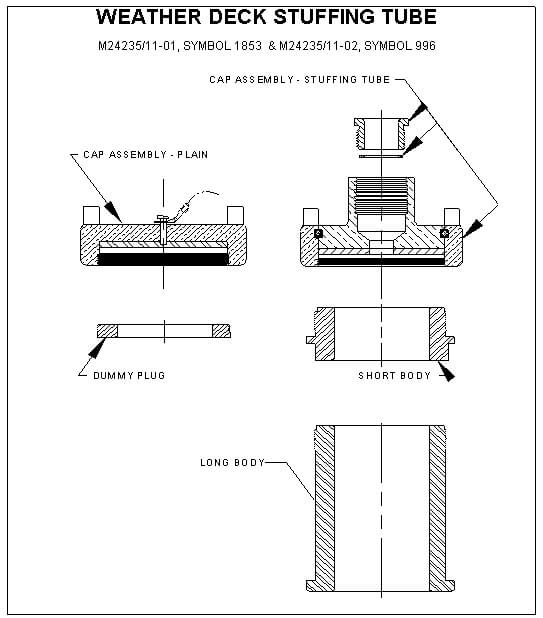

M24235/11-01 WEATHER DECK STUFFING TUBE SYMBOL 1853

9000-S6202-74438

MIL-S-24235-11-01-WEATHER-DECK-STUFFING-TUBE-SYMBOL-1853

Download Data Sheet

PRODUCT NAME PART NUMBER
WEATHER DECK M24235/11-01 SYM 1853, COMPLETE ASSEMBLY AWD-4000
STUFFING TUBE CAP ASSEMBLY FIG 4 MIL-S-24235/11 ONLY AWD-4010
PLAIN CAP ASSEMBLY FIG 5 MIL-S-24235 AWD-4011



ITEM DESCRIPTION MATERIAL
GLAND NUT BRASS
GLAND RING BRASS
ROTATING CAP BRASS
GASKET NEOPRENE
SHORT BODY STAINLESS STEEL
SOLID CAP BRASS
GASKET NEOPRENE
DUMMY PLUG STAINLESS STEEL

Back to Top





M24235/11-02 WEATHER DECK STUFFING TUBE SYMBOL 996

MIL-S-24235-11-02-WEATHER-DECK-STUFFING-TUBE-SYMBOL-996

Download Data Sheet

PRODUCT NAME PART NUMBER
WEATHER DECK M24235/11-02 SYM 996, COMPLETE ASSEMBLY AWD-4001
STUFFING TUBE CAP ASSEMBLY FIG 4 MIL-S-24235/11 ONLY AWD-4010
PLAIN CAP ASSEMBLY FIG 5 MIL-S-24235 AWD-4011



ITEM DESCRIPTION MATERIAL
GLAND NUT BRASS
GLAND RING BRASS
ROTATING CAP BRASS
GASKET NEOPRENE
SHORT BODY STAINLESS STEEL
SOLID CAP BRASS
GASKET NEOPRENE
DUMMY PLUG STAINLESS STEEL

Back to Top

Safety Notes

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
