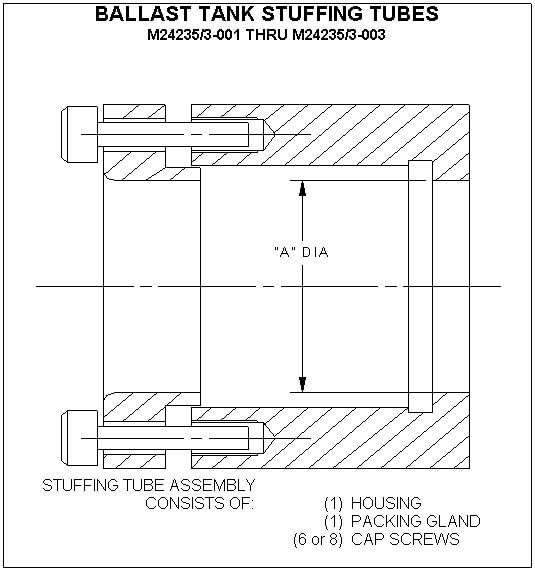

View All Military & Commercial Stuffing Tubes MIL S-24235 Ballast Tank Assemblies

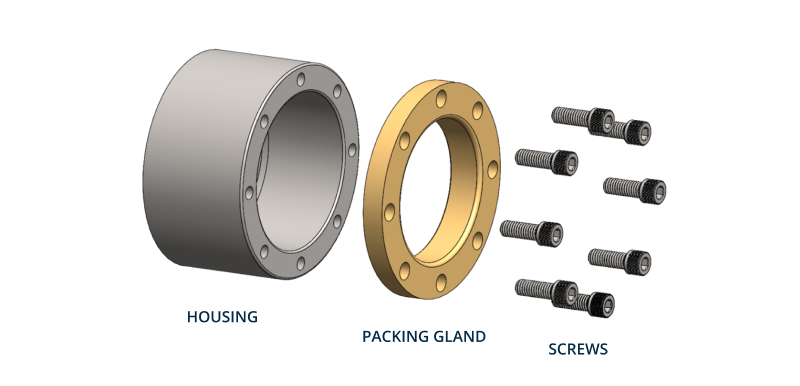

Includes: Housing, Packing Gland, and Screws
| SYMBOL # | M24235 ASSEMBLY # | PACKING BORE DIAMETER | HOUSING O.D. | SCREW SIZE | SCREW QTY | PENN EL PART # |
| 2430 | M24235/3-001 | 3.000 | 4-1/2 | 3/8-16 | 6 | AB3-SS-011 |
| 2428 | M24235/3-002 | 3.970 | 5-3/4 | 1/2-13 | 8 | AB3-SS-012 |
| 2429 | M24235/3-003 | 4.970 | 6-3/4 | 1/2-13 | 8 | AB3-SS-013 |
| N/A | 187095 ITEMS 1 & 2 | 7.500 | 9-1/2 | 1/2-13 | 10 | AB3-187095-0095 |
| PART | PART # | MATERIAL | PENN EL PART # |
| HOUSING | M24235/3-011 | STAINLESS STEEL | B3-SS-011 |
| HOUSING | M24235/3-012 | STAINLESS STEEL | B3-SS-012 |
| HOUSING | M24235/3-013 | STAINLESS STEEL | B3-SS-013 |
| HOUSING | 187095 ITEM 1 | STAINLESS STEEL | B3-SS-187095-0001 |
| PACKING GLAND | M24235/3-021 | ALUMINUM BRONZE | B3-BR-021 |
| PACKING GLAND | M24235/3-022 | ALUMINUM BRONZE | B3-BR-022 |
| PACKING GLAND | M24235/3-023 | ALUMINUM BRONZE | B3-BR-023 |
| PACKING GLAN | 187095 ITEM 2 | ALUMINUM BRONZE | B3-BR-187095-0002 |
| 3/8-16 CAP SCREW | N/A | STAINLESS STEEL | B3-SS-3/8-16 |
| 1/2-13 CAP SCREW | N/A | STAINLESS STEEL | B3-SS-1/2-13 |
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
