HT and HY80 Tubes

Pressureproof Stuffing Tubes

Back to Products

Sizes 1 Through 3

Use this to recreate the product info tables: https://divtable.com/generator/ copy html and embed on Text side of this WYSIWYG.

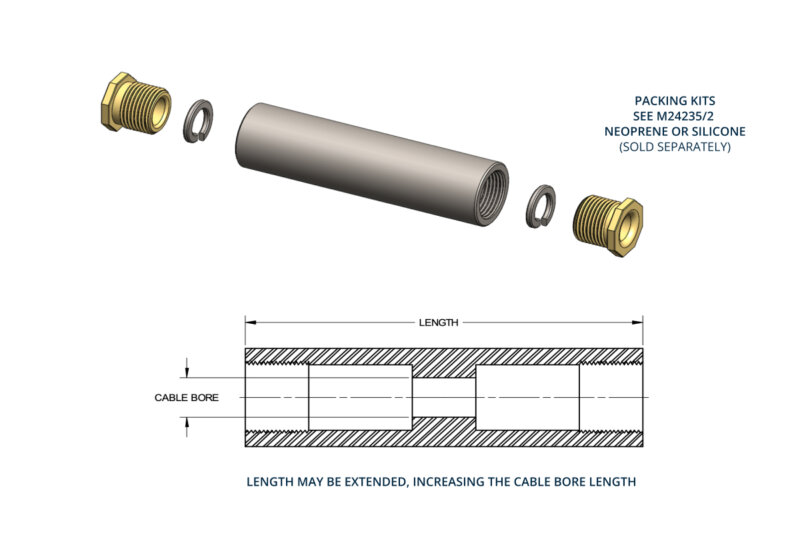

HT and HY80 Tubes sizes 1 through 3

Size Cable Bore Body Length Military Part # Material Symbol #
 1 .609 5-5/8 M24235/1-001 HY80-2405
 1 .609 5-5/8 M24235/1-101 HT-2405
 1 .609 5-5/8 M24235/1-201 HY100-2405
 2 .812 6-1/4 M24235/1-002 HY80-2406
 2 .812 6-1/4 M24235/1-102 HT-2406
 2 .812 6-1/4 M24235/1-202 HY100-2406
 3 1.062 7-1/8 M24235/1-003 HY80-2407
 3 1.062 7-1/8 M24235/1-103 HT-2407
 3 1.062 7-1/8 M24235/1-203 HY100-2407

PRESSUREPROOF STUFFING TUBES AVAILABLE IN SPECIAL LENGTHS

ORDERING CRITERIA – PRESSUREPROOF STUFFING TUBES:
1 – TUBE SIZE ( 1 – 9 )
2 – TUBE LENGTH IF LONGER THAN LISTED
3 – TUBE BODY MATERIAL ( H.T., HY80 OR HY100 )

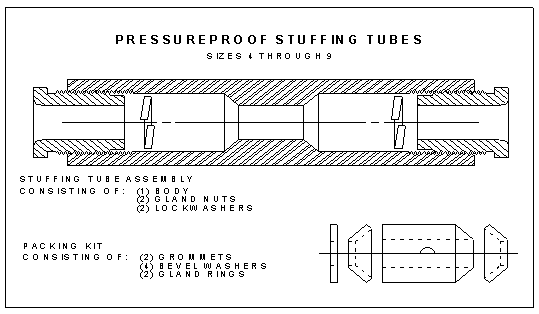

Sizes 4 Through 9

Use this to recreate the product info tables: https://divtable.com/generator/ copy html and embed on Text side of this WYSIWYG.

HT and HY80 Tubes sizes 1 through 3

Size Cable Bore Body Length Military Part # Material Symbol #
 1 .609 5-5/8 M24235/1-001 HY80-2405
 1 .609 5-5/8 M24235/1-101 HT-2405
 1 .609 5-5/8 M24235/1-201 HY100-2405
 2 .812 6-1/4 M24235/1-002 HY80-2406
 2 .812 6-1/4 M24235/1-102 HT-2406
 2 .812 6-1/4 M24235/1-202 HY100-2406
 3 1.062 7-1/8 M24235/1-003 HY80-2407
 3 1.062 7-1/8 M24235/1-103 HT-2407
 3 1.062 7-1/8 M24235/1-203 HY100-2407

PRESSUREPROOF STUFFING TUBES AVAILABLE IN SPECIAL LENGTHS

ORDERING CRITERIA – PRESSUREPROOF STUFFING TUBES:
1 – TUBE SIZE ( 1 – 9 )
2 – TUBE LENGTH IF LONGER THAN LISTED
3 – TUBE BODY MATERIAL ( H.T., HY80 OR HY100 )

Request a Quote Today

Request a quote and one of our experts will reach out to answer your questions and fulfill your order

Request a Quote
