Packing Assemblies for Ballast Tank

PK Ballast Tank

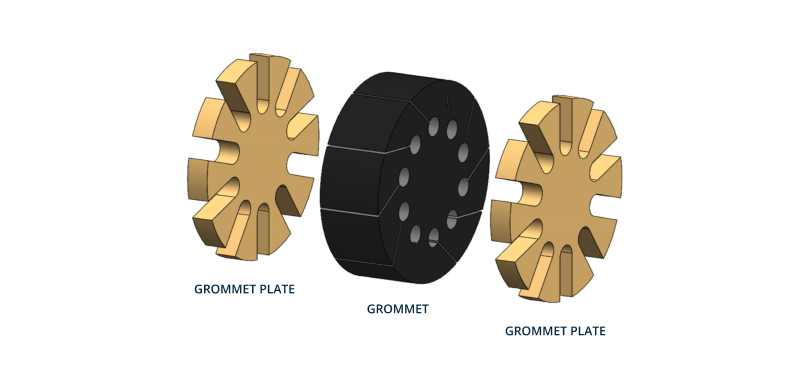

PACKING ASSM. PART NUMBER GROMMET PLATE 2 REQUIRED SLOT WIDTH GROMMET 1 REQUIRED GROMMET HOLE DIA
M24235/4-001 M24235/4-011 17/32 M24235/4-031 .485
M24235/4-002 M24235/4-012 21/32 M24235/4-032 .615
M24235/4-003 M24235/4-013 17/32 M24235/4-033 .485
M24235/4-004 M24235/4-014 21/32 M24235/4-034 .615
M24235/4-005 M24235/4-015 17/32 M24235/4-035 .485
M24235/4-006 M24235/4-016 21/32 M24235/4-036 .615

SPECIAL SIZES AND HOLE CONFIGURATIONS AVAILABLE UPON REQUEST
