Packing Kits for HT and HY80 Tubes

Pressureproof Tube Packing Assemblies

View All Military & Commercial Stuffing Tubes MIL S-24235 Packing Kits for HT and HY80 Tubes

Sizes 1 – 3
Sizes 4 – 9

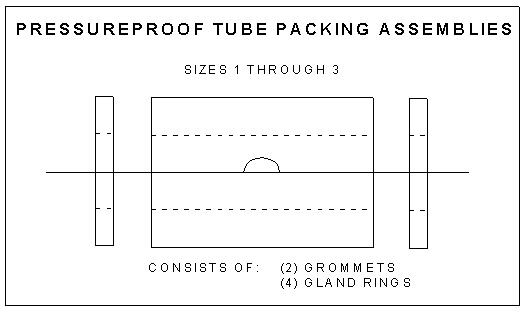

MIL-S-24235/2 – PACKING ASSEMBLIES  FOR PRESSURE PROOF BULKHEAD TUBES (Sizes 1-3)

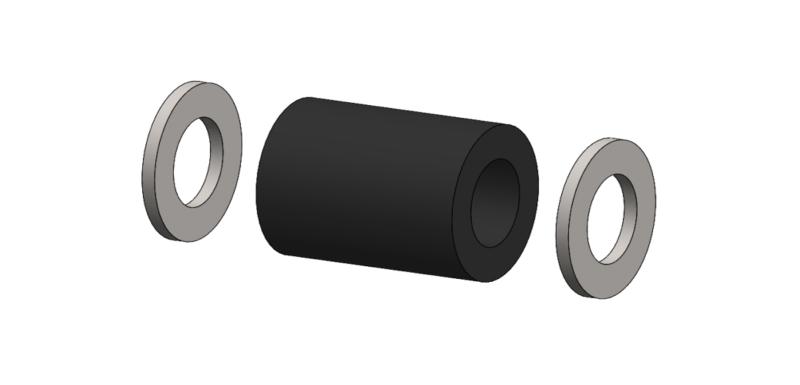

Includes: Neoprene Or Silicone Grommets,  Zinc Plated Steel Gland Rings, and Nylon Bevel Washers

MIL-S-24235/2 SIZES 1 - 3

Download Data Sheet

Size SYMBOL # PACKING ASSEMBLY PART # GROMMET INSIDE DIAMETER PENN EL PART # (NEOPRENE GROMMET) PENN EL PART # (SILICONE GROMMET)
Tube Size 1 2405.1 M24235/2-*001 .312 PA-NE-001 PA-SI-001
2405.2 M24235/2-*002 .404 PA-NE-002 PA-SI-002
2405.3 M24235/2-*003 .455 PA-NE-003 PA-SI-003
2405.4 M24235/2-*004 .490 PA-NE-004 PA-SI-004
2405.5 M24235/2-*005 .530 PA-NE-005 PA-SI-005
2405.6 M24235/2-*006 .558 PA-NE-006 PA-SI-006
2405.7 M24235/2-*007 .590 PA-NE-007 PA-SI-007
Tube Size 2 2406.1 M24235/2-*008 .636 PA-NE-008 PA-SI-008
2406.2 M24235/2-*009 .680 PA-NE-009 PA-SI-009
2406.3 M24235/2-*010 .730 PA-NE-010 PA-SI-010
2406.5 M24235/2-*011 .730 PA-NE-011 PA-SI-011
2406.4 M24235/2-*012 .800 PA-NE-012 PA-SI-012
Tube Size 3 2407.1 M24235/2-*013 .836 PA-NE-013 PA-SI-013
2407.2 M24235/2-*014 .900 PA-NE-014 PA-SI-014
2407.5 M24235/2-*015 .900 PA-NE-015 PA-SI-015
2407.3 M24235/2-*016 .950 PA-NE-016 PA-SI-016
2407.6 M24235/2-*017 .900 PA-NE-017 PA-SI-017
2407.7 M24235/2-*018 1.000 PA-NE-018 PA-SI-018
2407.4 M24235/2-*019 1.050 PA-NE-019 PA-SI-019

Back to Top

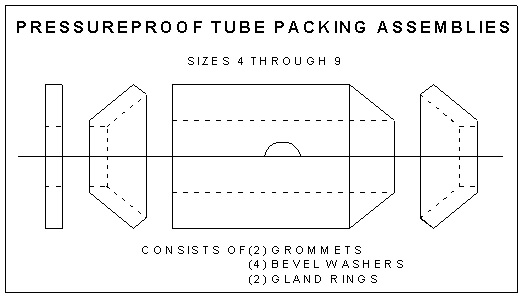

MIL-S-24235/2 – PACKING ASSEMBLIES  FOR PRESSURE PROOF BULKHEAD TUBES (Sizes 4-9)

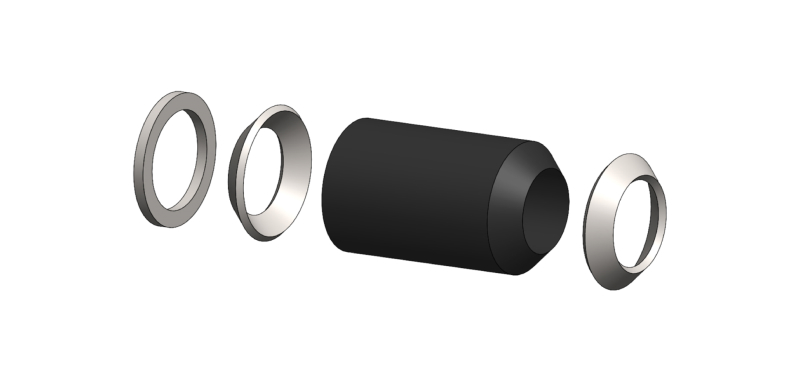

Includes: Neoprene Or Silicone Grommets,  Zinc Plated Steel Gland Rings, and Nylon Bevel Washers

MIL-S-24235/2 SIZES 4 - 9

Download Data Sheet

Size SYMBOL # PACKING ASSEMBLY PART # GROMMET INSIDE DIAMETER PENN EL PART # (NEOPRENE GROMMET) PENN EL PART # (SILICONE GROMMET)
Tube Size 4 2408.5 M24235/2-*030 1.075 PA-NE-030 PA-SI-030
2408.1 M24235/2-*031 1.115 PA-NE-031 PA-SI-031
2408.2 M24235/2-*032 1.130 PA-NE-032 PA-SI-032
2408.3 M24235/2-*033 1.174 PA-NE-033 PA-SI-033
2408.4 M24235/2-*034 1.250 PA-NE-034 PA-SI-034
Tube Size 5 2409.1 M24235/2-*035 1.300 PA-NE-035 PA-SI-035
2409.2 M24235/2-*036 1.370 PA-NE-036 PA-SI-036
2409.3 M24235/2-*037 1.415 PA-NE-037 PA-SI-037
Tube Size 6 2410.1 M24235/2-*038 1.470 PA-NE-038 PA-SI-038
2410.2 M24235/2-*039 .1.525 PA-NE-039 PA-SI-039
2410.3 M24235/2-*040 .1.570 PA-NE-040 PA-SI-040
Tube Size 7 2411.5 M24235/2-*041 1.675 PA-NE-041 PA-SI-041
2411.1 M24235/2-*042 1.715 PA-NE-042 PA-SI-042
2411.2 M24235/2-*043 1.750 PA-NE-043 PA-SI-043
2411.3 M24235/2-*044 1.783 PA-NE-044 PA-SI-044
2411.4 M24235/2-*045 1.840 PA-NE-045 PA-SI-045
Tube Size 8 2412.1 M24235/2-*046 1.185 PA-NE-046 PA-SI-046
2412.2 M24235/2-*047 2.000 PA-NE-047 PA-SI-047
2412.3 M24235/2-*048 2.119 PA-NE-048 PA-SI-048
Tube Size 9 2413.1 M24235/2-*049 2.200 PA-NE-049 PA-SI-049
2413.2 M24235/2-*050 2.250 PA-NE-050 PA-SI-050

Back to Top

Safety Notes

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
