View All Military & Commercial Stuffing Tubes MIL S-24235 Sealing Plugs for HT and HY80 Tubes

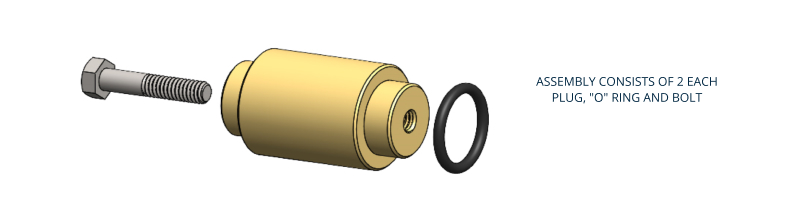

Includes: Brass Plug, “O” Ring, Zinc Plated Steel Bolt
*Parts May Be Ordered Individually*
| TUBE SIZE | DWG 73980 | MIL-STD-2003 | “O” RING | BOLT | PENN EL PART # |
| 1 | 51311-1 | 3A191-1 | ARP 568-113 | 5/16-18 X 1-1/2 | ASP-BR-1 |
| 2 | 51311-2 | 3A191-2 | ARP 568-116 | 5/16-18 X 1-1/2 | ASP-BR-2 |
| 3 | 51311-3 | 3A191-3 | ARP 568-214 | 5/16-18 X 1-1/2 | ASP-BR-3 |
| TUBE SIZE | DWG 73980 | MIL-STD-2003 | “O” RING | BOLT | PENN EL PART # |
| 4 | 51311-4 | 3A191-4 | ARP 568-218 | 5/16-18 X 3 | ASP-BR-4 |
| 5 | 51311-5 | 3A191-5 | ARP 568-220 | 5/16-18 X 3 | ASP-BR-5 |
| 6 | 51311-6 | 3A191-6 | ARP 568-223 | 5/16-18 X 3 | ASP-BR-6 |
| 7 | 51311-7 | 3A191-7 | ARP 568-225 | 5/16-18 X 3 | ASP-BR-7 |
| 8 | 51311-8 | 3A191-8 | ARP 568-227 | 5/16-18 X 3 | ASP-BR-8 |
| 9 | 51311-9 | 3A191-9 | ARP 568-228 | 5/16-18 X 3 | ASP-BR-9 |
