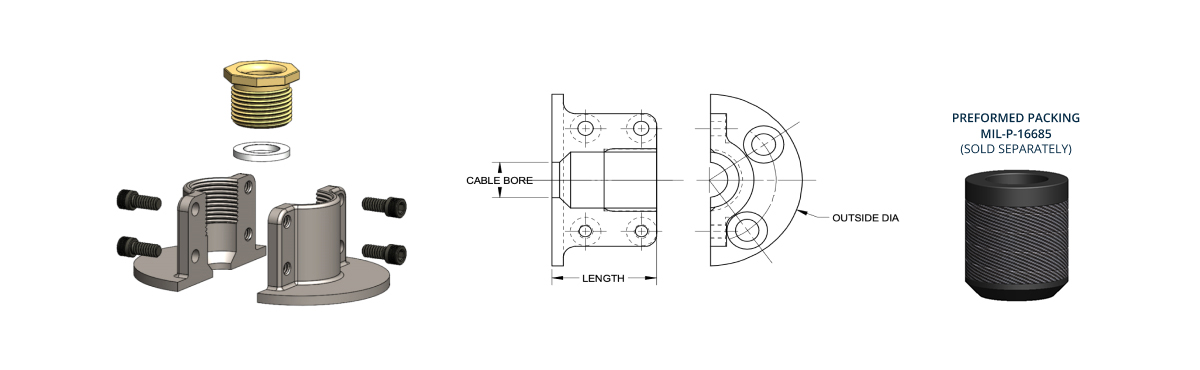

| SIZE | CABLE BORE | O.D. | MILITARY PART # | MATERIAL SYMBOL # |
| A | .406 | 2-7/8 | M24235/12-01 | 1660 |
| B | .515 | 3 | M24235/12-02 | 1661 |
| C | .640 | 3-1/8 | M24235/12-03 | 1662 |
| D | .750 | 3-1/4 | M24235/12-04 | 1663 |
| E | .812 | 3-1/4 | M24235/12-05 | 1664 |
| F | .843 | 3-3/8 | M24235/12-06 | 1665 |
| G | .953 | 3-5/8 | M24235/12-07 | 1666 |
| J | 1.062 | 3-3/4 | M24235/12-08 | 1667 |
| K | 1.171 | 4-1/8 | M24235/12-09 | 1668 |
| L | 1.265 | 4-1/8 | M24235/12-10 | 1669 |
| M | 1.406 | 4-3/8 | M24235/12-11 | 1670 |
| N | 1.515 | 4-1/2 | M24235/12-12 | 1671 |
| P | 1.625 | 4-5/8 | M24235/12-13 | 1672 |
| R | 1.750 | 4-3/4 | M24235/12-14 | 1673 |
| S | 1.875 | 5-1/4 | M24235/12-15 | 1674 |
| T | 2.062 | 5-1/2 | M24235/12-16 | 1675 |
| V | 2.187 | 5-5/8 | M24235/12-17 | 1676 |
| W | 2.312 | 5-3/4 | M24235/12-18 | 1677 |
| X | 2.500 | 5-7/8 | M24235/12-19 | 1678 |
| Y | 2.609 | 6 | M24235/12-20 | 1679 |
| Z | 2.871 | 6-1/4 | M24235/12-21 | 1658 |
| AA | 2.875 | 6-3/8 | M24235/12-22 | 1659 |
