Stuffing Tube Swaged Reduced Cable

View All Military & Commercial Stuffing Tubes MIL S-24235 Stuffing Tube Swaged Reduced Cable

Steel Bulkhead
Aluminum Bulkhead
Steel Deck
Aluminum Deck

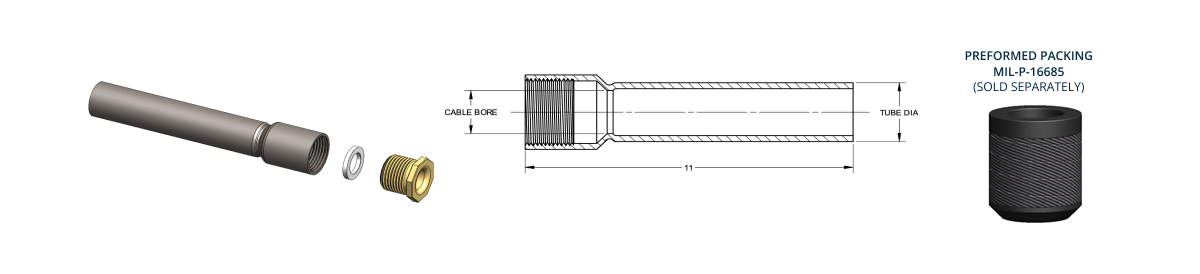

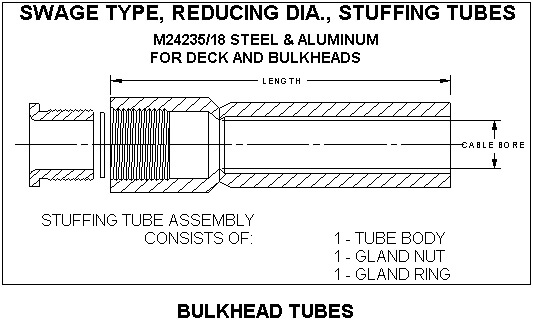

M24235/18 STEEL BULKHEAD SWAGED ASSEMBLIES

Includes: Steel Tube, Brass Gland Nut, and Zinc Plated Steel Gland Ring

MIL-S-24235-18-STEEL-BULKHEAD-SWAGED-TUBES-STEEL-TUBE-BRASS-GLAND-NUT-ZINC-PLATED-STEEL-GLAND-RING
Download Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A .406 27/32 1821 M24235/18-001 A18-ST-A-0675 MP-BA-A1
B .515 27/32 1822 M24235/18-002 A18-ST-B-0675 MP-BA-B1
C .640 1-1/16 1823 M24235/18-003 A18-ST-C-0675 MP-BA-C1
D .750 1-1/16 1824 M24235/18-004 A18-ST-D-0675 MP-BA-D1
E .812 1-21/64 1825 M24235/18-005 A18-ST-E-0675 MP-BA-E1
F .843 1-21/64 1826 M24235/18-006 A18-ST-F-0675 MP-BA-F1
G .953 1-21/64 1827 M24235/18-007 A18-ST-G-0675 MP-BA-G1
J 1.062 1-21/32 1828 M24235/18-008 A18-ST-J-0675 MP-BA-J1
K 1.171 1-21/32 1829 M24235/18-009 A18-ST-K-0675 MP-BA-K1
L 1.265 1-21/32 1830 M24235/18-010 A18-ST-L-0675 MP-BA-L1
M 1.406 1-29/32 1831 M24235/18-011 A18-ST-M-0675 MP-BA-M1
N 1.515 1-29/32 1832 M24235/18-012 A18-ST-N-0675 MP-BA-N1
P 1.625 2-5/16 1833 M24235/18-013 A18-ST-P-0675 MP-BA-P1
R 1.750 2-5/16 1834 M24235/18-014 A18-ST-R-0675 MP-BA-R1
S 1.875 2-5/16 1835 M24235/18-015 A18-ST-S-0900 MP-BA-S1
T 2.062 2-7/8 1836 M24235/18-016 A18-ST-T-0900 MP-BA-T1
V 2.187 2-7/8 1837 M24235/18-017 A18-ST-V-0900 MP-BA-V1
W 2.312 2-7/8 1838 M24235/18-018 A18-ST-W-0900 MP-BA-W1
X 2.500 3-1/2 1839 M24235/18-019 A18-ST-X-0900 MP-BA-X1
Y 2.609 3-1/2 1840 M24235/18-020 A18-ST-Y-0900 MP-BA-Y1
Z 2.781 3-1/2 1841 M24235/18-021 A18-ST-Z-0900 MP-BA-Z1
AA 2.875 3-1/2 1842 M24235/18-022 A18-ST-AA-0900 MP-BA-AA1
BB 3.157 4 1843 M24235/18-023 A18-ST-BB-0900 MP-BA-BB1

OTHER MATERIALS AVAILABLE UPON REQUEST

Back to Top

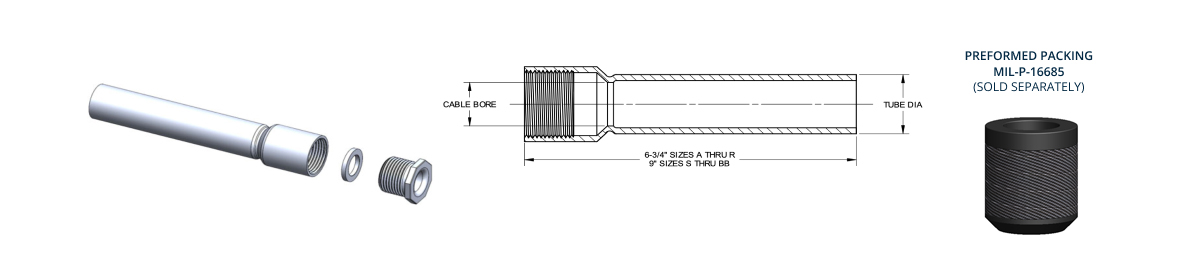

M24235/18 ALUMINUM BULKHEAD SWAGED ASSEMBLIES

Includes: Aluminum Tube, Gland Nut, and Gland Ring

MIL-S-24235-18-ALUMINUM-BULKHEAD-SWAGED-TUBES-ALUMINUM-TUBE-GLAND-NUT-AND-GLAND-RING
Download Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A .406 1-1/16 1871 M24235/18-031 A18-AL-A-0675 MP-BA-A1
B .515 1-1/16 1872 M24235/18-032 A18-AL-B-0675 MP-BA-B1
C .640 1-5/16 1873 M24235/18-033 A18-AL-C-0675 MP-BA-C1
D .750 1-5/16 1874 M24235/18-034 A18-AL-D-0675 MP-BA-D1
E .812 1-5/16 1875 M24235/18-035 A18-AL-E-0675 MP-BA-E1
F .843 1-5/16 1876 M24235/18-036 A18-AL-F-0675 MP-BA-F1
G .953 1-21/32 1877 M24235/18-037 A18-AL-G-0675 MP-BA-G1
J 1.062 1-29/32 1878 M24235/18-038 A18-AL-J-0675 MP-BA-J1
K 1.171 1-29/32 1879 M24235/18-039 A18-AL-K-0675 MP-BA-K1
L 1.265 1-29/32 1880 M24235/18-040 A18-AL-L-0675 MP-BA-L1
M 1.406 2-3/8 1881 M24235/18-041 A18-AL-M-0675 MP-BA-M1
N 1.515 2-3/8 1882 M24235/18-042 A18-AL-N-0675 MP-BA-N1
P 1.625 2-3/8 1883 M24235/18-043 A18-AL-P-0675 MP-BA-P1
R 1.750 2-3/8 1884 M24235/18-044 A18-AL-R-0675 MP-BA-R1
S 1.875 2-7/8 1885 M24235/18-045 A18-AL-S-0675 MP-BA-S1
T 2.062 3-1/2 1886 M24235/18-046 A18-AL-T-0675 MP-BA-T1
V 2.187 3-1/2 1887 M24235/18-047 A18-AL-V-0675 MP-BA-V1
W 2.312 3-1/2 1888 M24235/18-048 A18-AL-W-0675 MP-BA-W1
X 2.500 3-1/2 1889 M24235/18-049 A18-AL-X-0675 MP-BA-X1
Y 2.609 4 1890 M24235/18-050 A18-AL-Y-0675 MP-BA-Y1
Z 2.781 4 1891 M24235/18-051 A18-AL-Z-0675 MP-BA-Z1
AA 2.875 4 1892 M24235/18-052 A18-AL-AA-0850 MP-BA-AA1
BB 3.157 4-1/2 1893 M24235/18-053 A18-AL-BB-0850 MP-BA-BB1

Back to Top

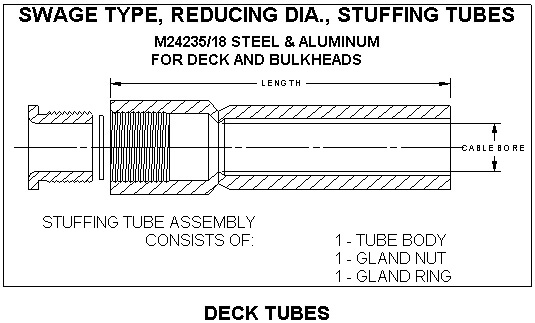

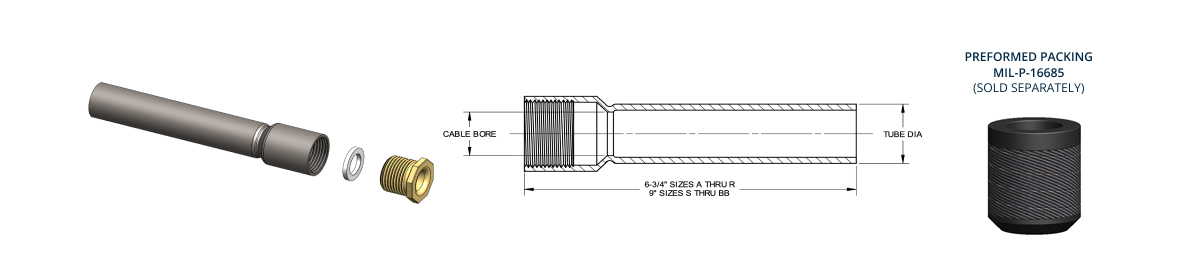

M24235/18 STEEL DECK SWAGED ASSEMBLIES

Includes: Steel Tube, Brass Gland Nut, and Zinc Plated Steel Gland Ring

MIL-S-24235-18-STEEL-DECK-SWAGED-TUBES-STEEL-TUBE-BRASS-GLAND-NUT-ZINC-PLATED-STEEL-GLAND-RING
Download Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A 4.06 1-1/16 1911 M24235/18-061 A18-ST-A-1100 MP-BA-A1
B .515 1-1/16 1912 M24235/18-062 A18-ST-B-1100 MP-BA-B1
C .640 1-5/16 1913 M24235/18-063 A18-ST-C-1100 MP-BA-C1
D .750 1-5/16 1914 M24235/18-064 A18-ST-D-1100 MP-BA-D1
E .812 1-5/16 1915 M24235/18-065 A18-ST-E-1100 MP-BA-E1
F .843 1-5/16 1916 M24235/18-066 A18-ST-F-1100 MP-BA-F1
G .953 1-21/32 1917 M24235/18-067 A18-ST-G-1100 MP-BA-G1
J 1.062 1-29/32 1918 M24235/18-068 A18-ST-J-1100 MP-BA-J1
K 1.171 1-29/32 1919 M24235/18-069 A18-ST-K-1100 MP-BA-K1
L 1.265 1-29/32 1920 M24235/18-070 A18-ST-L-1100 MP-BA-L1
M 1.406 2-3/8 1921 M24235/18-071 A18-ST-M-1100 MP-BA-M1
N 1.515 2-3/8 1922 M24235/18-072 A18-ST-N-1100 MP-BA-N1
P 1.625 2-3/8 1923 M24235/18-073 A18-ST-P-1100 MP-BA-P1
R 1.750 2-3/8 1924 M24235/18-074 A18-ST-R-1100 MP-BA-R1
S 1.875 2-7/8 1925 M24235/18-075 A18-ST-S-1100 MP-BA-S1
T 2.062 3-1/2 1926 M24235/18-076 A18-ST-T-1100 MP-BA-T1
V 2.187 3-1/2 1927 M24235/18-077 A18-ST-V-1100 MP-BA-V1
W 2.312 3-1/2 1928 M24235/18-078 A18-ST-W-1100 MP-BA-W1
X 2.500 3-1/2 1929 M24235/18-079 A18-ST-X-1100 MP-BA-X1
Y 2.609 4 1930 M24235/18-080 A18-ST-Y-1100 MP-BA-Y1
Z 2.781 4 1931 M24235/18-081 A18-ST-Z-1100 MP-BA-Z1
AA 2.875 4 1932 M24235/18-082 A18-ST-AA-1100 MP-BA-AA1
BB 3.157 4-1/2 1933 M24235/18-083 A18-ST-BB-1100 MP-BA-BB1

MODIFICATIONS AVAILABLE UPON REQUEST

Back to Top

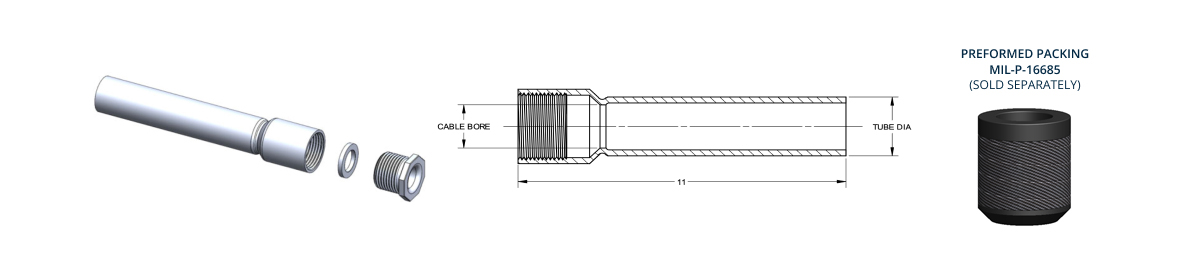

M24235/18 ALUMINUM DECK SWAGED ASSEMBLIES

Includes: Aluminum Tube, Gland Nut, and Gland Ring

MIL-S-24235-17-ALUMINUM-DECK-SWAGED-TUBES-ALUMINUM-TUBE-GLAND-NUT-AND-GLAND-RING
Download Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A .406 1-1/16 1941 M24235/18-091 A18-AL-A-1100 MP-BA-A1
B .515 1-1/16 1942 M24235/18-092 A18-AL-B-1100 MP-BA-B1
C .640 1-5/16 1943 M24235/18-093 A18-AL-C-1100 MP-BA-C1
D .750 1-5/16 1944 M24235/18-094 A18-AL-D-1100 MP-BA-D1
E .812 1-5/16 1945 M24235/18-095 A18-AL-E-1100 MP-BA-E1
F .843 1-5/16 1946 M24235/18-096 A18-AL-F-1100 MP-BA-F1
G .953 1-21/32 1947 M24235/18-097 A18-AL-G-1100 MP-BA-G1
J 1.062 1-21/32 1948 M24235/18-098 A18-AL-J-1100 MP-BA-J1
K 1.171 1-21/32 1949 M24235/18-099 A18-AL-K-1100 MP-BA-K1
L 1.265 1-21/32 1950 M24235/18-100 A18-AL-L-1100 MP-BA-L1
M 1.406 2-3/8 1951 M24235/18-101 A18-AL-M-1100 MP-BA-M1
N 1.515 2-3/8 1952 M24235/18-102 A18-AL-N-1100 MP-BA-N1
P 1.625 2-3/8 1953 M24235/18-103 A18-AL-P-1100 MP-BA-P1
R 1.750 2-3/8 1954 M24235/18-104 A18-AL-R-1100 MP-BA-R1
S 1.875 2-7/8 1955 M24235/18-105 A18-AL-S-1100 MP-BA-S1
T 2.062 3-1/2 1956 M24235/18-106 A18-AL-T-1100 MP-BA-T1
V 2.187 3-1/2 1957 M24235/18-107 A18-AL-V-1100 MP-BA-V1
W 2.312 3-1/2 1958 M24235/18-108 A18-AL-W-1100 MP-BA-W1
X 2.500 3-1/2 1959 M24235/18-109 A18-AL-X-1100 MP-BA-X1
Y 2.609 4 1960 M24235/18-110 A18-AL-Y-1100 MP-BA-Y1
Z 2.781 4 1961 M24235/18-111 A18-AL-Z-1100 MP-BA-Z1
AA 2.875 4 1962 M24235/18-112 A18-AL-AA-1100 MP-BA-AA1
BB 3.157 4-1/2 1963 M24235/18-113 A18-AL-BB-1100 MP-BA-BB1

MODIFICATIONS AVAILABLE UPON REQUEST

Back to Top

Safety Notes

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
