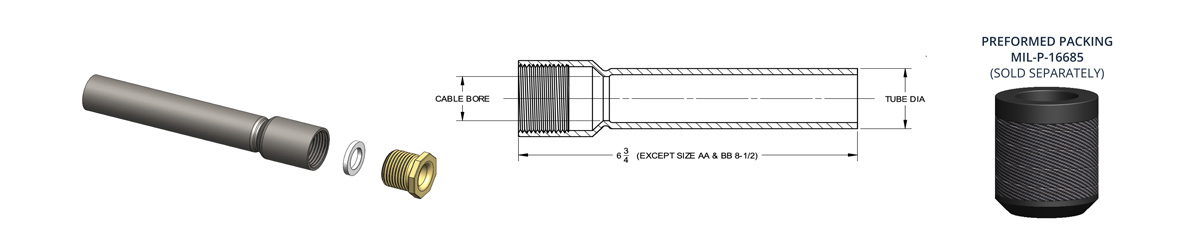

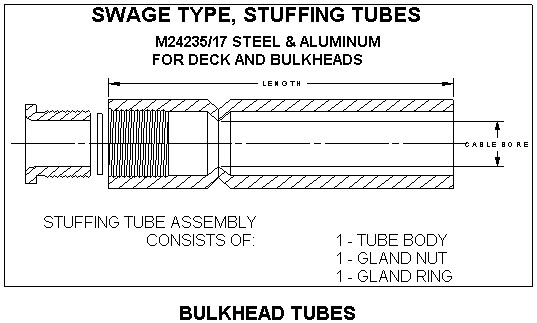

M24235/17 STEEL BULKHEAD SWAGED ASSEMBLIES

Includes: Steel Tube, Brass Gland Nut, and Zinc Plated Steel Gland Ring

MIL-S-24235-17-STEEL-BULKHEAD-SWAGED-TUBES-STEEL-TUBE-BRASS-GLAND-NUT-ZINC-PLATED-STEEL-GLAND-RING
Download Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A .406 1-1/16 1701 M24235/17-001 A17-ST-A-0675 MP-BA-A1
B .515 1-1/16 1702 M24235/17-002 A17-ST-B-0675 MP-BA-B1
C .640 1-5/16 1703 M24235/17-003 A17-ST-C-0675 MP-BA-C1
D .750 1-5/16 1704 M24235/17-004 A17-ST-D-0675 MP-BA-D1
E .812 1-5/16 1705 M24235/17-005 A17-ST-E-0675 MP-BA-E1
F .843 1-5/16 1706 M24235/17-006 A17-ST-F-0675 MP-BA-F1
G .953 1-21/32 1707 M24235/17-007 A17-ST-G-0675 MP-BA-G1
J 1.062 1-29/32 1708 M24235/17-008 A17-ST-J-0675 MP-BA-J1
K 1.171 1-29/32 1709 M24235/17-009 A17-ST-K-0675 MP-BA-K1
L 1.265 1-29/32 1710 M24235/17-010 A17-ST-L-0675 MP-BA-L1
M 1.406 2-3/8 1711 M24235/17-011 A17-ST-M-0675 MP-BA-M1
N 1.515 2-3/8 1712 M24235/17-012 A17-ST-N-0675 MP-BA-N1
P 1.625 2-3/8 1713 M24235/17-013 A17-ST-P-0675 MP-BA-P1
R 1.750 2-3/8 1714 M24235/17-014 A17-ST-R-0675 MP-BA-R1
S 1.875 2-7/8 1715 M24235/17-015 A17-ST-S-0675 MP-BA-S1
T 2.062 3-1/2 1716 M24235/17-016 A17-ST-T-0675 MP-BA-T1
V 2.187 3-1/2 1717 M24235/17-017 A17-ST-V-0675 MP-BA-V1
W 2.312 3-1/2 1718 M24235/17-018 A17-ST-W-0675 MP-BA-W1
X 2.500 3-1/2 1719 M24235/17-019 A17-ST-X-0675 MP-BA-X1
Y 2.609 4 1720 M24235/17-020 A17-ST-Y-0675 MP-BA-Y1
Z 2.781 4 1721 M24235/17-021 A17-ST-Z-0675 MP-BA-Z1
AA 2.875 4 1722 M24235/17-022 A17-ST-AA-0850 MP-BA-AA1
BB 3.157 4-1/2 1723 M24235/17-023 A17-ST-BB-0850 MP-BA-BB1

OTHER MATERIALS AVAILABLE UPON REQUEST

Back to Top

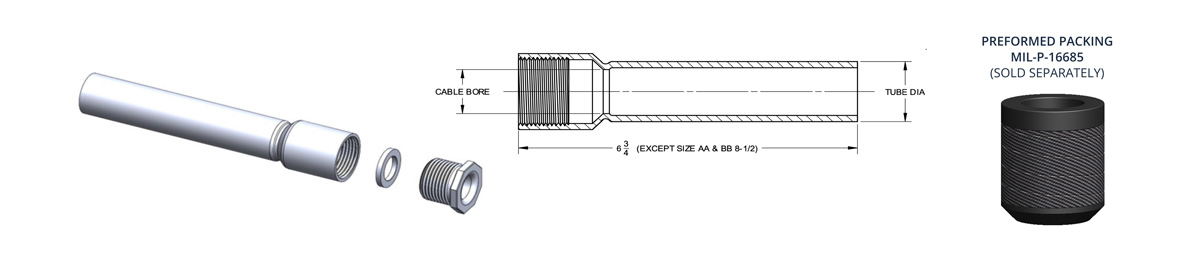

M24235/17 ALUMINUM BULKHEAD SWAGED TUBE ASSEMBLIES

Includes: Aluminum Tube, Gland Nut, and Gland Ring

MIL-S-24235-17-ALUMINUM-BULKHEAD-SWAGED-TUBES-ALUMINUM

Download Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A .406 1-1/16 1731 M24235/17-031 A17-AL-A-0675 MP-BA-A1
B .515 1-1/16 1732 M24235/17-032 A17-AL-B-0675 MP-BA-B1
C .640 1-5/16 1733 M24235/17-033 A17-AL-C-0675 MP-BA-C1
D .750 1-5/16 1734 M24235/17-034 A17-AL-D-0675 MP-BA-D1
E .812 1-5/16 1735 M24235/17-035 A17-AL-E-0675 MP-BA-E1
F .843 1-5/16 1736 M24235/17-036 A17-AL-F-0675 MP-BA-F1
G .953 1-21/32 1737 M24235/17-037 A17-AL-G-0675 MP-BA-G1
J 1.062 1-29/32 1738 M24235/17-038 A17-AL-J-0675 MP-BA-J1
K 1.171 1-29/32 1739 M24235/17-039 A17-AL-K-0675 MP-BA-K1
L 1.265 1-29/32 1740 M24235/17-040 A17-AL-L-0675 MP-BA-L1
M 1.406 2-3/8 1741 M24235/17-041 A17-AL-M-0675 MP-BA-M1
N 1.515 2-3/8 1742 M24235/17-042 A17-AL-N-0675 MP-BA-N1
P 1.625 2-3/8 1743 M24235/17-043 A17-AL-P-0675 MP-BA-P1
R 1.750 2-3/8 1744 M24235/17-044 A17-AL-R-0675 MP-BA-R1
S 1.875 2-7/8 1745 M24235/17-045 A17-AL-S-0675 MP-BA-S1
T 2.062 3-1/2 1746 M24235/17-046 A17-AL-T-0675 MP-BA-T1
V 2.187 3-1/2 1747 M24235/17-047 A17-AL-V-0675 MP-BA-V1
W 2.312 3-1/2 1748 M24235/17-048 A17-AL-W-0675 MP-BA-W1
X 2.500 3-1/2 1749 M24235/17-049 A17-AL-X-0675 MP-BA-X1
Y 2.609 4 1750 M24235/17-050 A17-AL-Y-0675 MP-BA-Y1
Z 2.781 4 1751 M24235/17-051 A17-AL-Z-0675 MP-BA-Z1
AA 2.875 4 1752 M24235/17-052 A17-AL-AA-0850 MP-BA-AA1
BB 3.157 4-1/2 1753 M24235/17-053 A17-AL-BB-0850 MP-BA-BB1

OTHER MATERIALS AVAILABLE UPON REQUEST

Back to Top

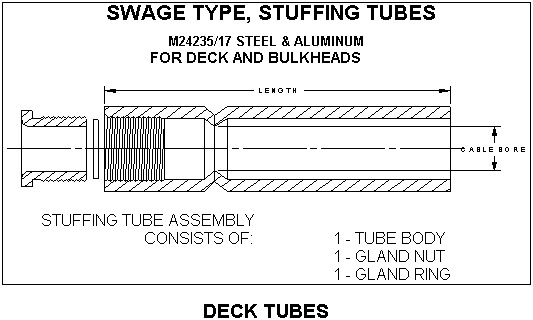

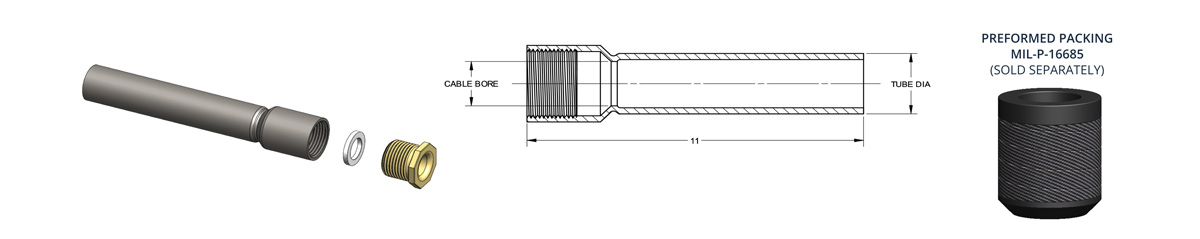

M24235/17 STEEL DECK SWAGED TUBE ASSEMBLIES

Includes: Steel Tube, Brass Gland Nut, Zinc Plated Steel Gland Ring

MIL-S-24235-17-STEEL-DECK-SWAGED-TUBES-STEEL-TUBE-BRASS-GLAND-NUT-ZINC-PLATED-STEEL-GLAND-RINGDownload Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A .406 1-1/16 1761 M24235/17-061 A17-ST-A-1100 MP-BA-A1
B .515 1-1/16 1762 M24235/17-062 A17-ST-B-1100 MP-BA-B1
C .640 1-5/16 1763 M24235/17-063 A17-ST-C-1100 MP-BA-C1
D .750 1-5/16 1764 M24235/17-064 A17-ST-D-1100 MP-BA-D1
E .812 1-5/16 1765 M24235/17-065 A17-ST-E-1100 MP-BA-E1
F .843 1-5/16 1766 M24235/17-066 A17-ST-F-1100 MP-BA-F1
G .953 1-21/32 1767 M24235/17-067 A17-ST-G-1100 MP-BA-G1
J 1.062 1-29/32 1768 M24235/17-068 A17-ST-J-1100 MP-BA-J1
K 1.171 1-29/32 1769 M24235/17-069 A17-ST-K-1100 MP-BA-K1
L 1.265 1-29/32 1770 M24235/17-070 A17-ST-L-1100 MP-BA-L1
M 1.406 2-3/8 1771 M24235/17-071 A17-ST-M-1100 MP-BA-M1
N 1.515 2-3/8 1772 M24235/17-072 A17-ST-N-1100 MP-BA-N1
P 1.625 2-3/8 1773 M24235/17-073 A17-ST-P-1100 MP-BA-P1
R 1.750 2-3/8 1774 M24235/17-074 A17-ST-R-1100 MP-BA-R1
S 1.875 2-7/8 1775 M24235/17-075 A17-ST-S-1100 MP-BA-S1
T 2.062 3-1/2 1776 M24235/17-076 A17-ST-T-1100 MP-BA-T1
V 2.187 3-1/2 1777 M24235/17-077 A17-ST-V-1100 MP-BA-V1
W 2.312 3-1/2 1778 M24235/17-078 A17-ST-W-1100 MP-BA-W1
X 2.500 3-1/2 1779 M24235/17-079 A17-ST-X-1100 MP-BA-X1
Y 2.609 4 1780 M24235/17-080 A17-ST-Y-1100 MP-BA-Y1
Z 2.781 4 1781 M24235/17-081 A17-ST-Z-1100 MP-BA-Z1
AA 2.875 4 1782 M24235/17-082 A17-ST-AA-1100 MP-BA-AA1
BB 3.157 4-1/2 1783 M24235/17-083 A17-ST-BB-1100 MP-BA-BB1
MODS AVAILABLE: 12-1/2″ LENGTH | BENT 90 DEGREES

OTHER MATERIALS AVAILABLE UPON REQUEST

Back to Top

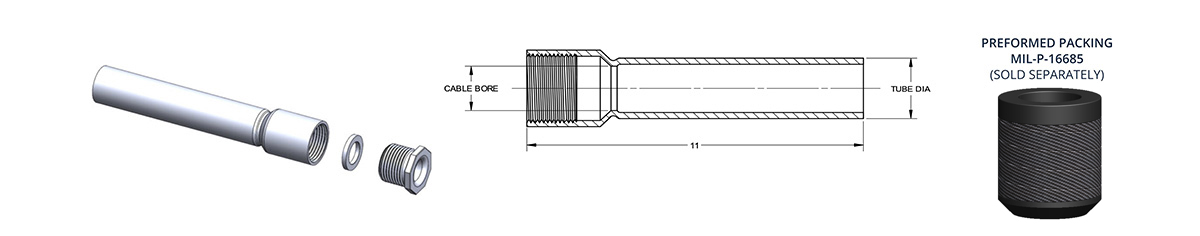

M24235/17 ALUMINUM DECK SWAGED TUBE ASSEMBLIES

Includes: Aluminum Tube, Gland Nut And Gland Ring

MIL-S-24235-17-ALUMINUM-DECK-SWAGED-TUBES-ALUMINUM-graphic

Download Data Sheet

SIZE CABLE BORE TUBE DIAMETER SYMBOL # M24235 ASSEMBLY # PENN EL PART # PREFORMED PACKING #
A .406 1-1/16 1791 M24235/17-091 A17-AL-A-1100 MP-BA-A1
B .515 1-1/16 1792 M24235/17-092 A17-AL-B-1100 MP-BA-B1
C .640 1-5/16 1793 M24235/17-093 A17-AL-C-1100 MP-BA-C1
D .750 1-5/16 1794 M24235/17-094 A17-AL-D-1100 MP-BA-D1
E .812 1-5/16 1795 M24235/17-095 A17-AL-E-1100 MP-BA-E1
F .843 1-5/16 1796 M24235/17-096 A17-AL-F-1100 MP-BA-F1
G .953 1-21/32 1797 M24235/17-097 A17-AL-G-1100 MP-BA-G1
J 1.062 1-29/32 1798 M24235/17-098 A17-AL-J-1100 MP-BA-J1
K 1.171 1-29/32 1799 M24235/17-099 A17-AL-K-1100 MP-BA-K1
L 1.265 1-29/32 1800 M24235/17-100 A17-AL-L-1100 MP-BA-L1
M 1.406 2-3/8 1801 M24235/17-101 A17-AL-M-1100 MP-BA-M1
N 1.515 2-3/8 1802 M24235/17-102 A17-AL-N-1100 MP-BA-N1
P 1.625 2-3/8 1803 M24235/17-103 A17-AL-P-1100 MP-BA-P1
R 1.750 2-3/8 1804 M24235/17-104 A17-AL-R-1100 MP-BA-R1
S 1.875 2-7/8 1805 M24235/17-105 A17-AL-S-1100 MP-BA-S1
T 2.062 3-1/2 1806 M24235/17-106 A17-AL-T-1100 MP-BA-T1
V 2.187 3-1/2 1807 M24235/17-107 A17-AL-V-1100 MP-BA-V1
W 2.312 3-1/2 1808 M24235/17-108 A17-AL-W-1100 MP-BA-W1
X 2.500 3-1/2 1809 M24235/17-109 A17-AL-X-1100 MP-BA-X1
Y 2.609 4 1810 M24235/17-110 A17-AL-Y-1100 MP-BA-Y1
Z 2.781 4 1811 M24235/17-111 A17-AL-Z-1100 MP-BA-Z1
AA 2.875 4 1812 M24235/17-112 A17-AL-AA-1100 MP-BA-AA1
BB 3.157 4-1/2 1813 M24235/17-113 A17-AL-BB-1100 MP-BA-BB1
MODS AVAILABLE: 12-1/2″ LENGTH | BENT 90 DEGREES

OTHER MATERIALS AVAILABLE UPON REQUEST

Back to Top
